SmartScope® ZIP Systems
SmartScope ZIP® systems offer superior performance with AccuCentric® autocompensating 7:1 zoom optics, multiple illumination sources, and a range of machine travels. SmartScope ZIP systems are available in a range of XYZ measurement volumes, from 250 x 150 x 200 mm to 800 x 820 x 300 mm.
All ZIP models excel at video measurement and multisensor versatility for the highest productivity. Standard ZIP models are configured for the toughest applications.
Standard*:
North America: 300 x 150 x 200
International: 250 x 150 x 200
SmartScope ZIP® 250 sets a high standard in benchtop metrology. This durable system features fast stage speed for maximum throughput and short cycle times, without sacrificing accuracy. A heavy duty cast base with Y-axis center drive assures metrological stability. ZIP 250 also offers:
Accurate video metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position
Reliable & Precise – Heavy-duty cast base and integral compound stage with Y-axis center drive for stability
Multisensor versatility – Optional touch probes, lasers and micro-probes
*OPTIONAL- International: Extended X Axis, 300
Standard*:
300 x 300 x 200

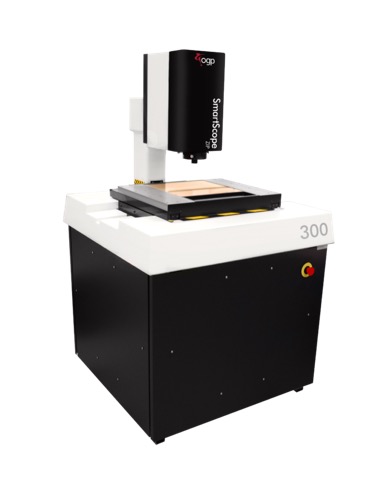

SmartScope ZIP® 300 is a fast, accurate floor model metrology system offering a combination of hardware performance, optical capability, and ease-of-use. A rigid cast iron base ensures stability and metrological accuracy. SmartScope ZIP 300 is also available with an optional 300 mm of Z-axis travel. ZIP 300 also offers:
Accurate video metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position
Measurement stability is built-in – A granite support structure ensures vibration isolation and measurement stability
Multisensor versatility – Optional touch probes, lasers and micro-probes
*OPTIONAL- Extended Z Axis, 300
Standard*:
450 x 450 x 200

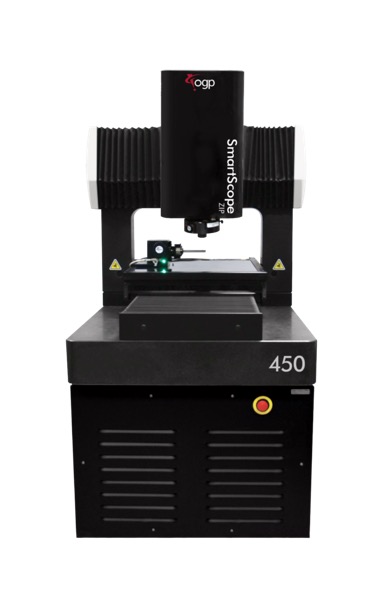

SmartScope ZIP® 450 is a floor model metrology system offering video and multisensor measurement for large parts. It has a reputation for extreme reliability and proven metrological performance. Traditionally strong in video measurement, it is also available with contact and non-contact probes, as well as the TTL laser.
Every SmartScope ZIP 450 is multisensor capable. Just add scanning probe, laser, touch probe, or micro-probing sensors and you’ll measure your most complicated parts in a single setup. ZIP 450 offers:
Accurate Video Metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position
Built-in Measurement Stability – A granite base and bridge provide a rigid, orthogonal structure for measurement stability
Multisensor Versatility – Optional non-contact sensors and touch probes
*OPTIONAL- Extended Y Axis 610, Extended Z Axis 300
Standard
635 x 635 x 200

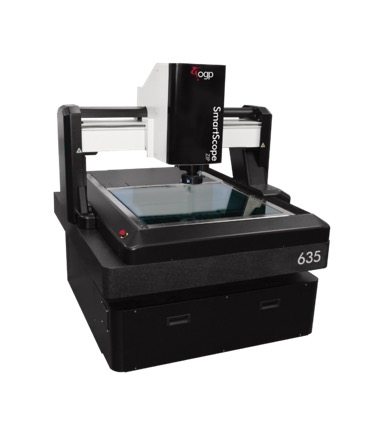

SmartScope ZIP® 635 is a floor model metrology system offering high speed multisensor measurement of large parts. Its high acceleration and velocity in all three measurement axes contribute to measurement productivity, while its granite base and extruded, lightweight aluminum bridge provide a rigid platform for built-in measurement stability. ZIP 635 offers:
Accurate Video Metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position
Built-in Stability – A granite base and extruded aluminum bridge provide a rigid, orthogonal structure for measurement stability
High Speed – High acceleration and velocity in all three measurement axes
High Reliability – Rigid drive system contributes to long-term reliability
Multisensor Versatility – Optional non-contact sensors and touch probes
Standard*:
800 x 820 x 200

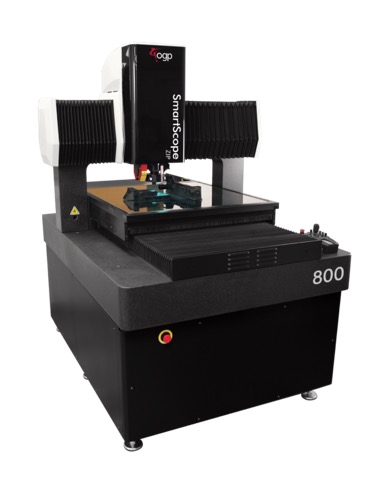

SmartScope ZIP® 800 is a floor model metrology system offering multisensor measurement of large parts, due to its large XYZ measurement volume. Measurement stability is built-in with ZIP 800, since its granite base and bridge provide a rigid, orthogonal base for accurate measurements. SmartScope ZIP 800 is also available with an optional 300 mm of Z-axis travel. ZIP 800 also offers:
Accurate Video Metrology – AccuCentric® motorized zoom lens automatically compensates magnification for each zoom position
Built-in Measurement Stability – A granite base and bridge provide a rigid, orthogonal structure for measurement stability
Measure Large Parts – Large measurement volume
Multisensor Versatility – Optional non-contact sensors, touch probes, and micro-probes
*OPTIONAL: Extended Z Axis, 300
