Gage-Lab is partnered with R&R Fixtures to bring you CMM and Vision fixtures with a large variety of modular fixturing components. You can set up a part within minutes, reducing inspection time and eliminating the search for ways to hold your parts.

Call Gage-Lab Products today to increase your machine's performance with the right fixtures. (801) 716-2972

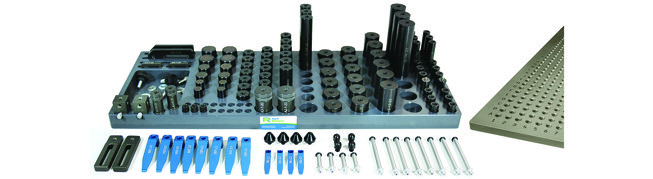

CMM Fixture kits
CMMkit

  • Magnetic and clamping kits are used for holding steel, aluminum, plastic, ferrous and other nonferrous parts.
  • Clamping kits are used for holding aluminum, plastic, brass, titanium and other nonferrous parts.
  • Fixture base plates and components are available with English or Metric Threads.
  • Kits come in either 1/4-20, M8 or M4 thread size, or you can choose to build your own kit.
  • Components sold seperately for M12 thread size.
The R&R CMM fixture kit can be used with any type of CMM.  It is a quick, economical way to hold and secure parts for inspection.  The alpha-numeric threaded hole fixture plate and comprehensive set of labeled components allow the user to create a repeatable location of the part each and every time.  Parts can be inspected on a fixture within just a matter of minutes.





Vision Fixture kits

Every fixture is made with a precision acrylic base plate that allows for back lighting and a clear, clean look at the part. R&R offers two modular filtering options, each made specifically to fit your machine, giving you the ability to hold and inspect virtually anything. The alpha-numeric plates and labeled components enable the user to set parts up the same way each and every time.

For vision machines 400mm x 400mm or smaller:

fc1e2a8335a047e68bc765c4a946d683
Quick Load Corner Fixture
  • Ability to switch back and forth between multiple fixture plates easily.
  • Designed for maximum viewing and probing accessibility around the part without covering up critical features.
  • Modular components are small enough to hold, locate, and view even the smallest parts.
  • Multi-hole or multi-window modular fixturing plates can be quickly swapped in a repeatable position each time.



For vision machines 400mm x 400mm or larger:

5f60820b3ef4439ebadaa8629eb3ff80
Interchangeable Vision Fixture
  • Ability to switch back and forth between multiple fixture plates easily.
  • Designed to use the entire measuring and viewing area of your vision stage.
  • Choose between a combination of modular or custom fixture plates to hold multiple parts at a time.
  • Multi-hole or multi-window modular fixturing plates can be quickly swapped in a repeatable position each time.
